VIP Suites AV
This guide provides an overview of the AV features of the VIP suites on the 2nd floor of the Football support building, and contains descriptions of the equipment and configurations for common AV functions.
Displays

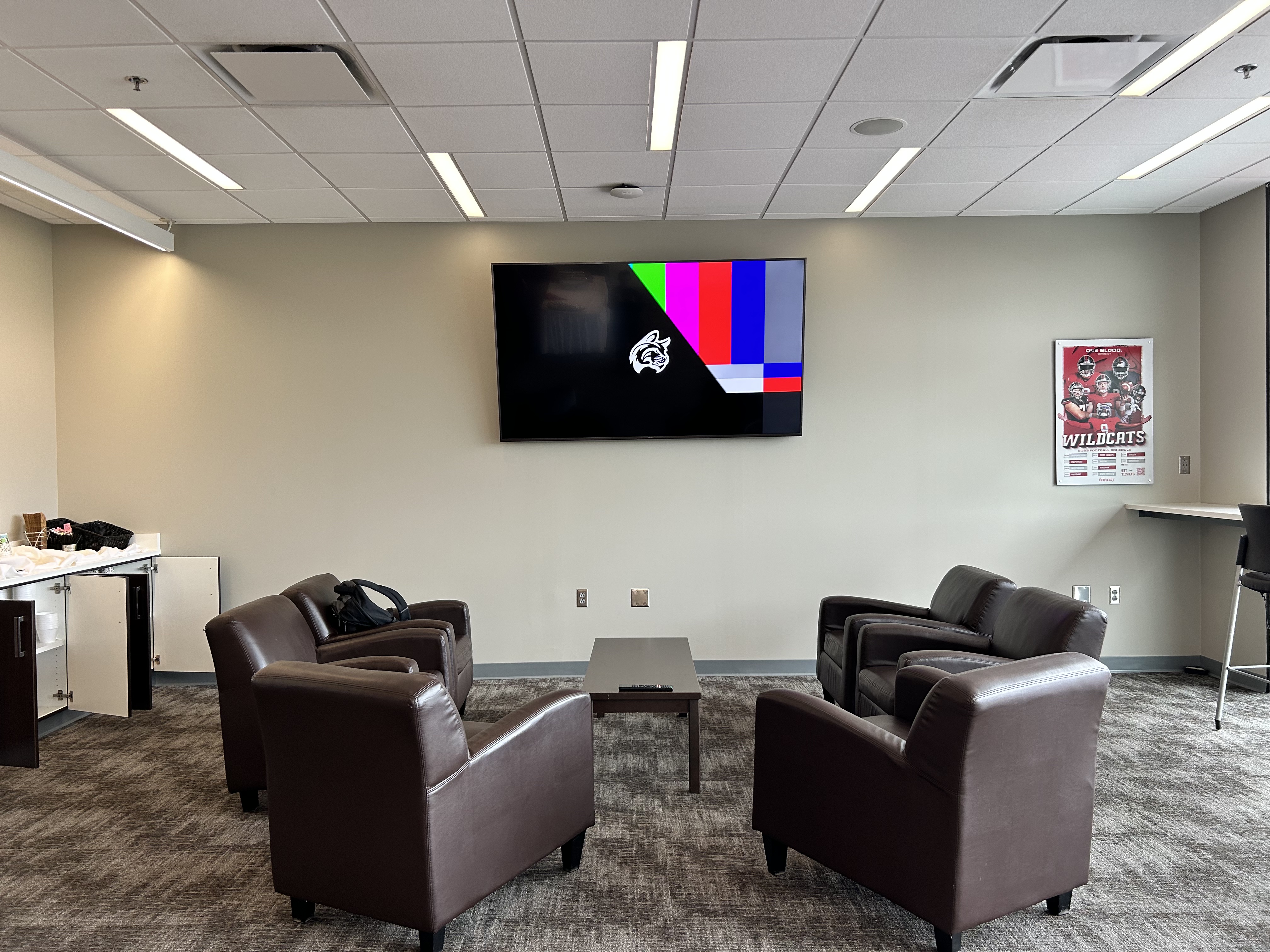

Each of the 3 rooms in this suite has a wall-mounted TV.
Sources
The TVs in this suite has the following input connections available:
- A local HDMI laptop jack in the side panel of the TV;
- Sharp TVs must be on Input HDMI 3.
- Sony TV in presidential suite must be on HDMI 4
- Laptop cable with adapters is stored in the bottom drawer in room 202.
- Connection from central equipment rack, in the middle room, 202 (this connects the PC in that rack to the TVs in 200, 202 and 204);
- Sharp TV must be on Input HDMI 1 to receive this signal
- Sony TV in presidential suite must be on HDMI 2 to receive this signal
- If a "No Input Detected" message appears on the screen, verify that the cable is plugged into the correct HDMI input, or cycle through the other HDMI input jacks by pressing the INPUT button on the remote control. If that doesn't solve the problem, press the Reset button on the Extron eLink receiver, located behind the TVs in 200 or 202.
Control
Power, volume, and source selection are controlled by the buttons on the TV's wireless remote control.
- turn the TV on/off
- adjust the volume of the content shown on the TV, use the wireless TV remote which is kept in the bottom drawer in room 202, or by pressing the up and down volume buttons on the side panel of the TV in each room.
- switch the input source, between HDMI 1, and HDMI 3.
- HDMI 1 is the connection from room 202, which is broadcast wirelessly to the TV in each room.
- HDMI 3 is the TV's side panel HDMI jack, to which an HDMI cable can be used to connect a laptop or tablet.
The Sony TV remote (shown) controls the large TV in the Presidential Suite. A Sharp TV remote controls the smaller TVs in room 200 and 202.
Audio
Audio volume is controlled by the volume up and down buttons on the TV's wireless remote control.
Any content shown on the TV of that room will be heard through the TV's speakers. Audio volume is controlled by the TV remote controls, or the buttons on the left side panel of each TV.
