Ott Hall Classroom 157

OHSN Classroom 157

Display

These classrooms have a fully equipped teaching station, sound system, and two displays showing the same signal.​

   •   A - Short Throw Interactive Projector

            o    Mounted from Wall above Whiteboard

            o    Projects onto Whiteboard

   •   B – Ceiling Mounted Projector

            o    Projects onto Manual Screen in corner of the room

Sources

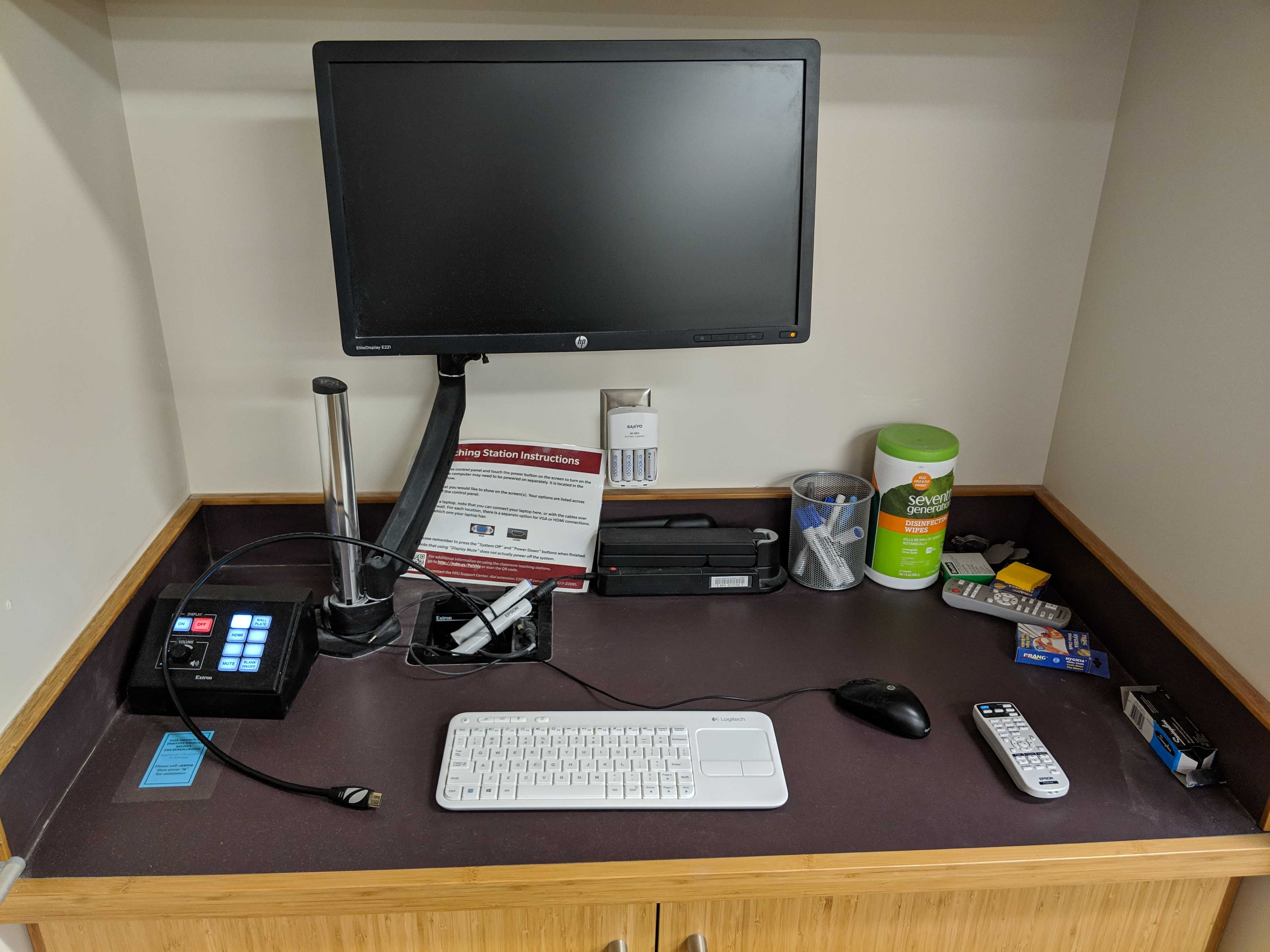

The teaching station will provide multiple sources which can be shown on one or more of the displays:​

   •    LaptopHDMI

            o    Cable Cubby at rack location

            o    Laptop connection located under the projector at the front of the room

   •    Desktop PC

 o  USB jacks, connected to desktop PC (in cable cubby)

   •    Blu-Ray Player

Audio

   •   Ceiling Speakers

   •   Volume Control on Button Control Panel

Video Conference

   •    Connection for Adobe Connect Video Conferencing Cart System located in the rear of the room

   •    lnterfaced through a double-ganged wall plate on the opposite side of the room from the instructor.

Control

   •    Extron MLC200 Button Control Panel located at the counter in the Southeast corner of the room.

Rack

   •    Located in the cabinet in the Southeast corner of the room.

Resolution

   •   For optimal results, please set your laptop's resolution to 1280x800. Aspect Ratio is 16:10.

Classroom View
